Williams Wood

196 Andrew Young Rd.

Sulphur, LA 70665



Product & Services Catalog







ARCHITECTURAL, HISTORICAL & CUSTOM MILLWORK (YOUR DESIGN)









Specializing in hard to find & Standard Moldings



Custom Kiln Drying



We have been Kiln Drying and Milling Lumber since 1985.



.

Stocked Items will be posted on our web page at www.williamswood.net or call Scott 337-515-6996 for availability





Office: 337-515-6996                                              Fax: 337-583-4448

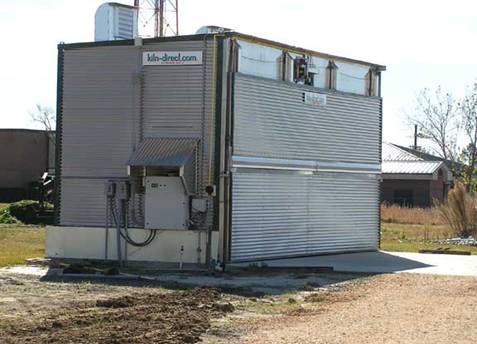

Kiln Dried Lumber

We Kiln Dry Hardwood Lumber 4/4 and 5/4 to the moisture content 6% to 8%. Such as Red Oak, Ash & Cypress. For Southern Yellow Pine 4/4 and 5/4 is dried to 12% to 14% moisture content. The time it takes to dry is dependent on the amount of moisture in the material. The wetter it is the longer it takes. For example dead green oak 4/4 or 5/4 takes about 3 to 4 weeks. If the material has been air drying for approximately 6 weeks the moisture should be about 30% to 50%. This would take about 1 to 2 weeks to dry. If the material has been air drying for approximately 6 months the moisture should be about 20% to 30%. This would take about 4 to 10 days to dry. If you have had the material stored in a hot tin barn for 6 months the moisture content is not going to dry down to 6% to 8%. Its only going to dry to whatever the surrounding air is, which is almost always wet here in Southwest Louisiana. If you build any furniture or cabinets out of material that is going to be stored inside your house where the air conditioner and heat is on, that has not been kiln dried, the boards are going to shrink and the joints are going to open up. The capacity of our kiln is approximately 10,000 board feet in one charge. The longest material we can get in the kiln is approximately 26 feet. The kiln is forklift loaded this only takes about an hour to unload and reload.

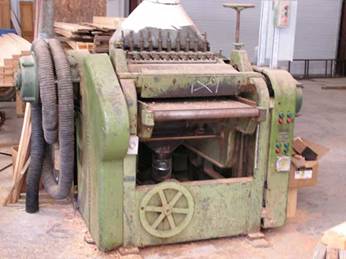

Surfacing Operation

            We use a Buss 55 Double Planer, set up to surface the top & bottom S2S, up to 30” wide x 14” thick, after the material goes through the kiln. We mainly use this to clean and flatten the material so we can grade the material.

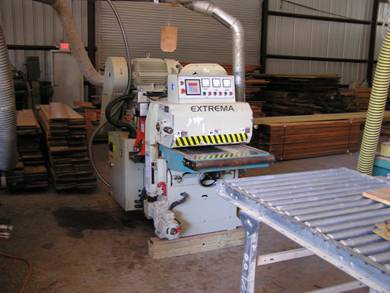

Finishing Planing Operation

            We use a 24” Extrema  Double  Planer, set up to surface the top & bottom S2S, up to 24” wide x 7” thick, after the material goes through the kiln. We mainly use this to clean and flatten the material so we can grade the material.

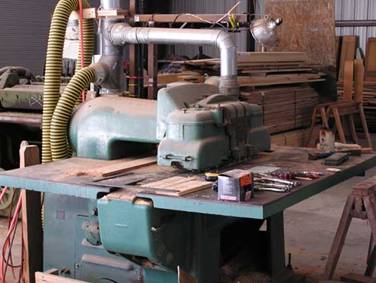

Straight Edge Rip Saw Operation



            We use a Mattison 202 rip saw to cut a straight edge on one edge and also to cut out blanks for the molder.

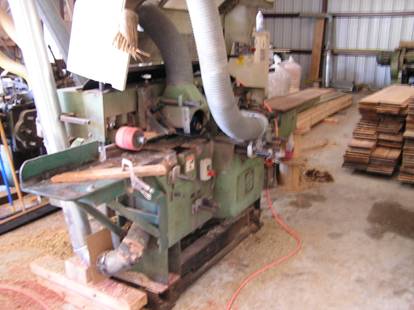

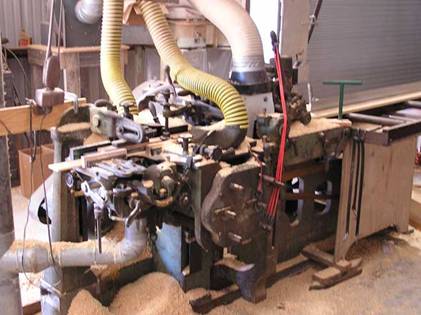

High Speed Molder Operation

We use a Hermance, Weinig & Silver molders to produce most of our moldings that includes flooring, crown, base, siding, quarter round, shoe, etc… We have approximately 400 sets of knives.

Hermance Molder



Weinig  Molder

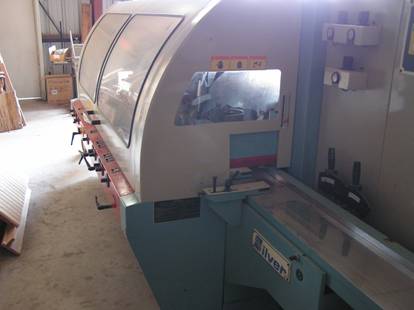

Silver Molder





Profile Grinding Operation

            We also have two profile grinders to make and to resharpen knives for the molder and shaper cutter heads.

Situations often arise where stock molding profiles are unsuitable to complete a millwork project. Williams Wood Moldings specializes in custom and historical molding reproductions and new profile designs. We have the ability to match molding profiles to existing samples, photos, artist renderings or architects drawings. In addition, we provide our customers the opportunity to custom order their moldings in any hardwood or softwood species. The customization capabilities of Williams Wood offer the discriminating customer the tools to design, modify and complete the perfect project.

The steps in our customization process are as follows:

Computerized drawings are developed to match the desired profiles. These drawings are made available to the customer for review and approval.

Once approved, the drawings are used to develop custom knives and tooling to cut the desired molding profiles.

The customer is then offered the opportunity to select and specify the hardwood or softwood species of their choice.

The custom moldings are manufactured, carefully packaged and shipped to the job site.

Samples of the project and its required tooling is recorded and cataloged by customer name for future use.



STOCKED  LUMBER                    STOCKED  MOLDINGS









Stocked Moldings:

Type Molding

Material

Price per Foot

5 Ό” Crown x 14’

SYP C&Btr Stain Grade

$1.40

5 Ό” Base x 14’

SYP C&Btr Stain Grade

$1.20

4 Ό” Crown x 14’

SYP C&Btr Stain Grade

$1.20

3 Ό” Crown x 14’

SYP C&Btr Stain Grade

$0.85

3 Ό” Casing (9E) x 14’

SYP C&Btr Stain Grade

$0.85

3 Ό” Chair Rail x 14’

SYP C&Btr Stain Grade

$0.85

Ύ” Qtr. Round x 14’

SYP C&Btr Stain Grade

$0.40

Ύ” Shoe x 14’

SYP C&Btr Stain Grade

$0.40







We also have other moldings not listed in smaller quantities.



Typical Moldings we Manufacture



Crown, Base, Casing, Fluted, Beaded, Cove, Quarter Round, Half Round, Shoe, Siding, SPIB Pattern #105, 115, 116, 117, 122, Log Cabin Siding, Bevel Siding, T/G Double Beaded Ceiling, 1x6, 1x4 T/G Flooring also in Kiln Dried After Treat (KDAT) Milled to Pattern, 3” x 6” Double T/G, 2” x 6” w/ 3/8” T/G



Other Materials we have Special Ordered: Call for Current Pricing.

Glue Lam Beams (Non Treated or Treated),

Cypress Timbers 4" x 4" x 20' thru 12" x 12" x 20'

Timbers Southern Yellow Pine 2"x6"x30' thru 12"x12"x30' (Non Treated or Treated to .25, .40, .60, .80)

Round Pilings & Post Treated 2.5 (For Salt Water) 6" Tip x 20' thru 12" Butt x 35'

Treated Decking #2 Southern Yellow Pine 5/4" x 6" x 16' Treated to .25.

We also mill High End Moldings from

Material Supplier Inventory List





Plywood



Lumber



Agathis

Afrormosia

Alder, Red

Alder, Red

Ash, Natural

Aniegre

Ash, White

Antique (Reclaimed) Lumber & Timber

Birch, Natural

Ash, White

Birch, Natural (Prefinished)

Avodire

Birch, Chinese, Natural

Bloodwood

Birch, Chinese, Natural (Prefinished)

Basswood, Appalachian

Birch, Red

Beech, Nth

Birch, Russian

Birch, Yellow

Birch, White

Bubinga, African

Cedar, Aromatic, Red

Cedar, Aromatic Red

Cherry

Cedar, Spn

Cypress

Cherry, Appalachian

Faveira

Cherry, Southern

Fir, Exterior

Cottonwood, Southern

Fir, Marine

Sinker Cypress

Hickory

Yellow Cypress

Lyptus

Edinam

Mahogany, African

Red Gum

Mahogany, Honduras (Genuine)

Sap Gum

Maple, Natural

Hickory, Northern

Maple, Natural (Prefinished)

Imbuia

Maple, White

Ipe Decking

Meranti

Jatoba

Obeche

Limba, Black

Obeche (Prefinished)

Limba, White

Okoume

Lyptus

Pecan

Magnolia, Southern

Pine, Parana

Mahogany, African

Pine, Radiata, Exterior

Mahogany, Genuine

Pine, White (Knotty)

Makore

Poplar

Hard Maple, Northern

Red Oak

Soft Maple, Northern, Figured Grain

Red Oak (Prefinished)

Soft Maple, Northern, Paint Grain

Sapele

Soft Maple, Northern, Whad

Sen

Soft Maple, Pacific Coast

Virola

Red Oak, Appalachian

Walnut

Red Oak, Southern

White Oak

White Oak, Appalachian

4' x 10' Plywood

White Oak, Southern

8' x 4' Counter Front Plywood

Obeche, African

Medium Density Overlay (MDO)

Padauk, African



Pecan, Southern



Ponderosa Pine, West Coast



Eastern White Pine



Radiata Pine



Sinker Pine, Dense Texture



Yellow Pine, Southern



Yellow Poplar



Purple heart, South American



Sapele



Shedua



Teak



Walnut, Steamed American, Black



Wenge, West African



Willow, Southern



Zebrawood, African



Yellow Cypress Timbers





Are you building or remodeling? Before you buy any trim, molding or millwork come by and see what we have to offer.



We manufacture molding & millwork for: Home Owners, Contractors, & Lumber Yards



Higher Quality doesn’t always mean higher prices.

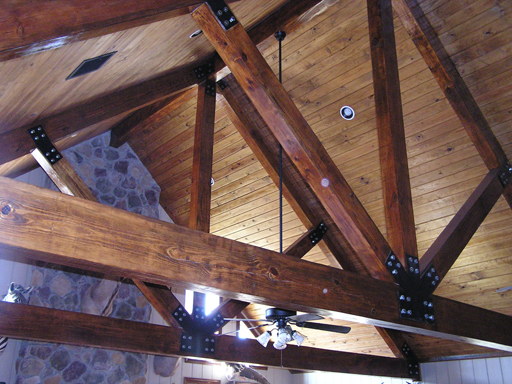

Photos of Installed Millwork

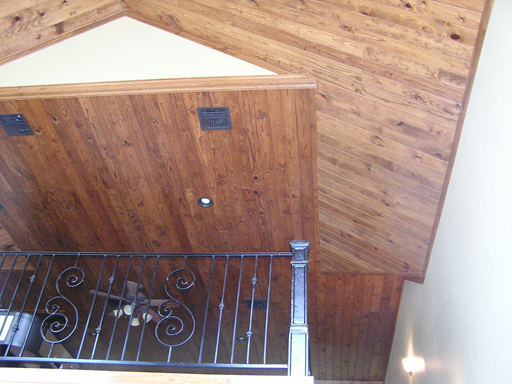

5 1/4 Paneling on Ceiling



5 1/4 Paneling on Ceiling

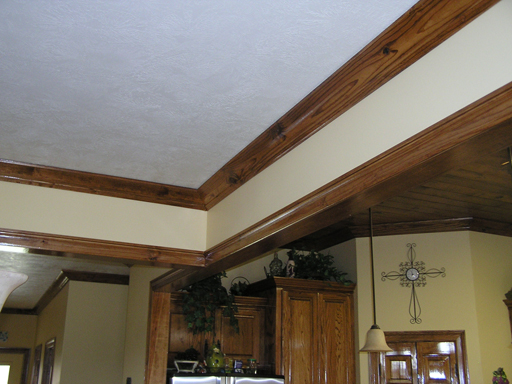

5 1/4" Crown Installed on 9'-0" Ceiling
